OneVue 72MHz Transmitter
The OneVue Sync Transmitter unifies timekeeping and critical notifications on the Primex OneVue Platform, using a high-penetration frequency to talk to devices throughout a building or campus. (Broadcast at 72Mhz/FCC-licensed frequency).
OneVue Transmitters can be configured with different power output levels, allowing coverage to scale from a single building to an entire campus.
It’s About Synchronicity
Efficiently sends time synchronization signals through commercial building materials to ensure all devices receive important time updates, even for daylight saving time, and after a power outage.
May be equipped to receive either GPS or NTP time sources, and provide the flexibility to scale signal coverage from a single building to an entire campus.
- 49 channels available (pre-programmed prior to shipping)
- GPS receiver obtains time from satellite
- Transmitter can also obtain time over network from NTP

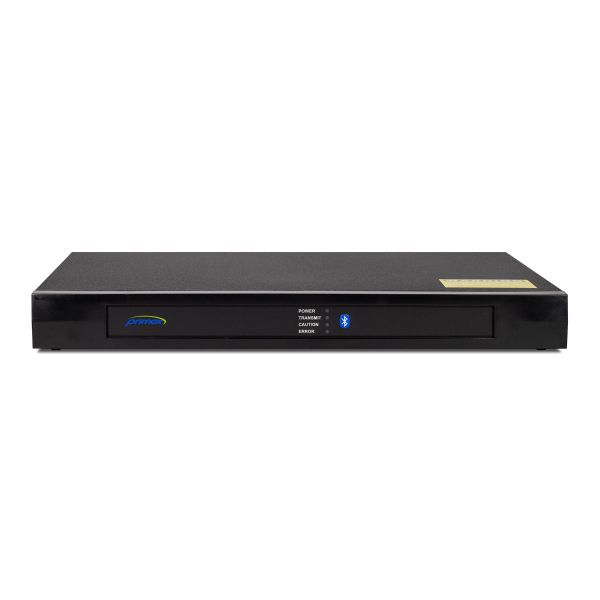

1-Watt Transmitters

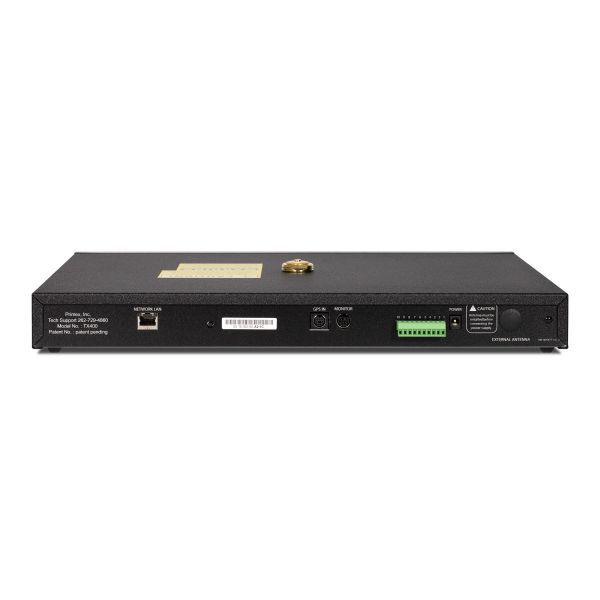

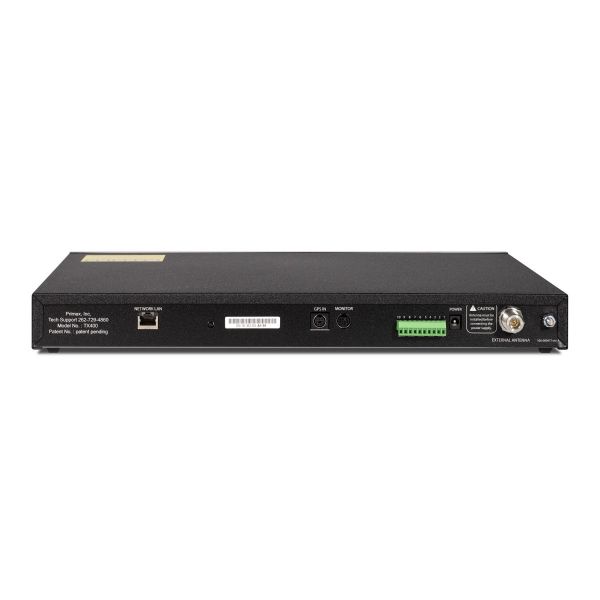

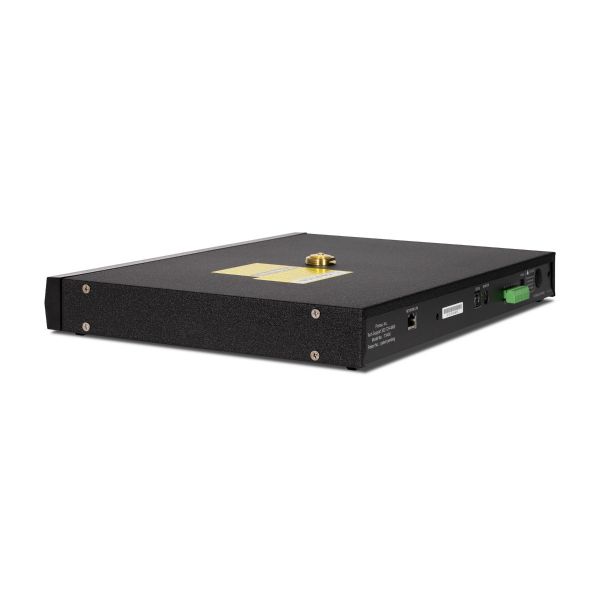

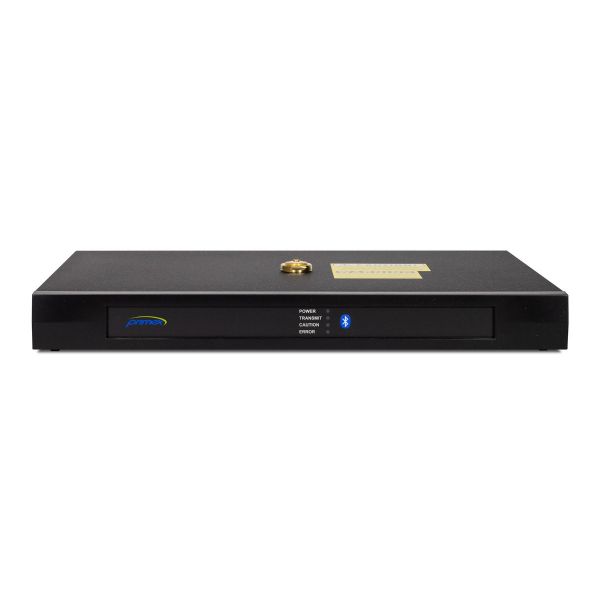

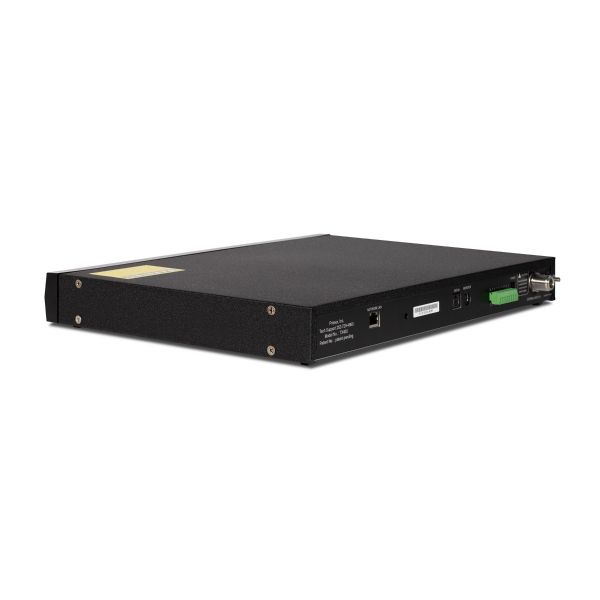

Appropriate for a single building, these transmitters are configurable with an internal antenna, or with an external roof-mounted antenna to expand coverage.
5-Watt and 30-Watt Transmitters
Campus-wide deployments are facilitated with the OneVue Transmitter 5-watt or 30-watt models, which include an external roof-mounted antenna, and require installation by a Primex Certified Installer.
| Dimensions | 17.0”L x 12.0”W x 1.7”D (43.2cm x 30.5cm x 4.32cm) |
|---|---|
| Power Supply Input | 120 VAC, 50/60 Hz, 0.6 Amp |
| Power Supply Output | 9 VDC, 2.78 Amp (6 ft. cord, 1.83m) |
1 Watt Transmitters
| Part # | Part # (Old) | Description |
|---|---|---|
| 104-AS235N | TX4001NTP | OneVue Transmitter 1 Watt with NTP capability |
| 104-AS235M | TX4001IM | Sync OneVue Transmitter 1 Watt, Internal Antenna, NTP and GPS Capability. Internal Antenna and GPS Receiver Included |
| 104-AS215M | TX4001EM | Sync OneVue Transmitter 1 Watt, External Antenna, NTP and GPS Capability. External Antenna with 100’ Cable, GPS Receiver and 50’ GPS Extension Cable Included |
| 104-AS235R | TX4001NR | OneVue Transceiver 1 Watt Repeater |
Transmitter Accessories
| Part # | Part # (Old) | Description |
|---|---|---|
| 199-000077 | - | Transmitter Rack |
| 101-000045 | XR01AP | Transmitter Accessory Pack - Transmitter Rack and UPS |
| 100-000149 | 14196-350 | Surge Protector and Battery Back-up System |
5 - 30 Watt Transmitters
| Part # | Part # (Old) | Description |
|---|---|---|
| 104-AS275M | TX4005EM | OneVue Transmitter 5 Watt with external antenna, NTP and GPS Input |
| 104-AS255M | TX40030EM | OneVue Transmitter 30 Watt with external antenna, NTP and GPS Input |
