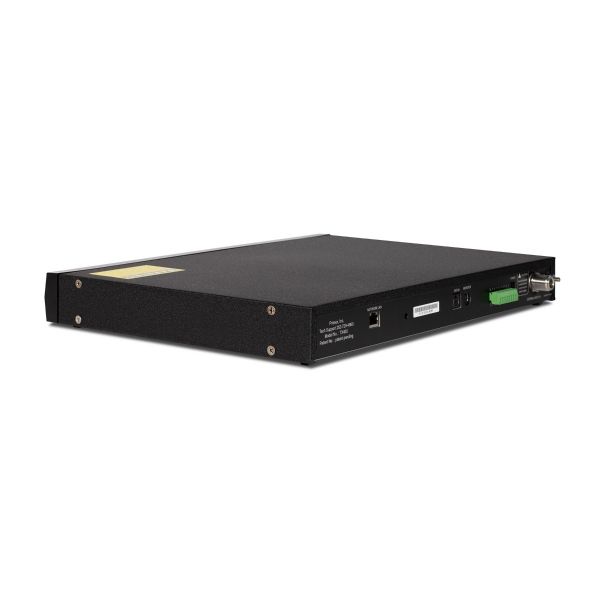

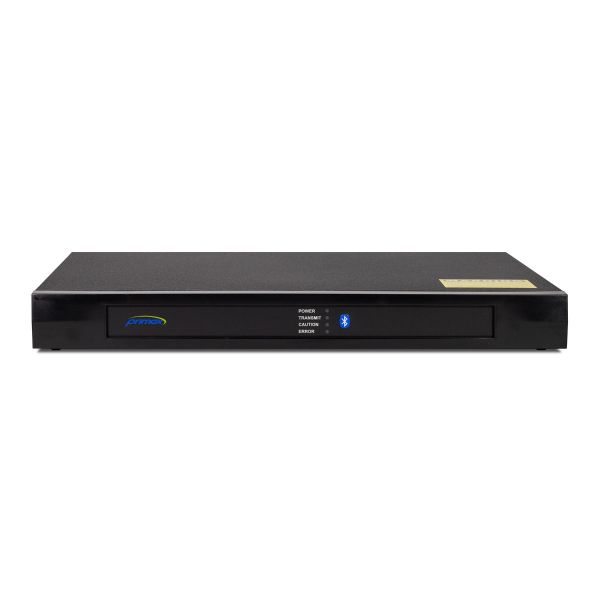

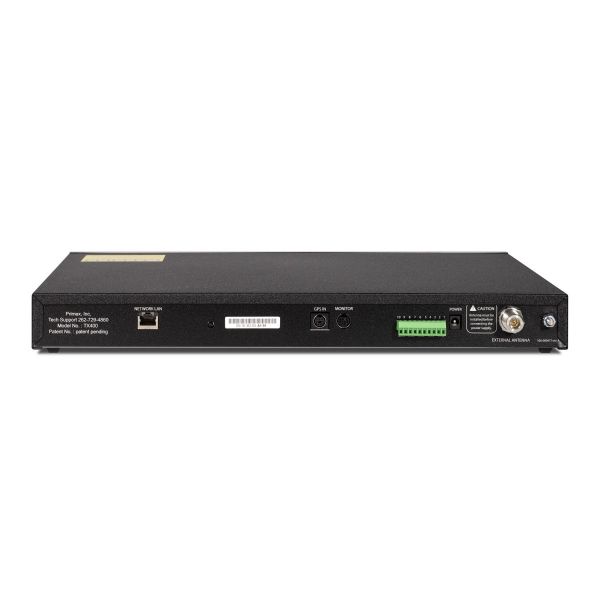

OneVue 72MHz 1 Watt Transmitter

The OneVue Sync Transmitter unifies timekeeping and critical notifications on the Primex OneVue Platform, using a high-penetration frequency to talk to devices throughout a building or campus. (Broadcast at 72MHz/FCC-licensed frequency).

One Vue Transmitters can be configured with different output levels, allowing coverage to scale from a single building to an entire campus.

Part Number: 104-AS215M
Features

Product Details

It's About Synchronicity

Efficiently sends time synchronization signals through commercial building materials to ensure all devices receive important time updates, even for daylight saving time, and after a power outage.

May be equipped to receive either GPS or NTP time sources, and provide the flexibility to scale signal coverage from a single building to an entire campus.

  • 49 channels available (pre-programmed prior to shipping)
  • GPS receiver obtains time from satellite
  • Transmitter can also obtain time over network from NTP

1-Watt Transmitters

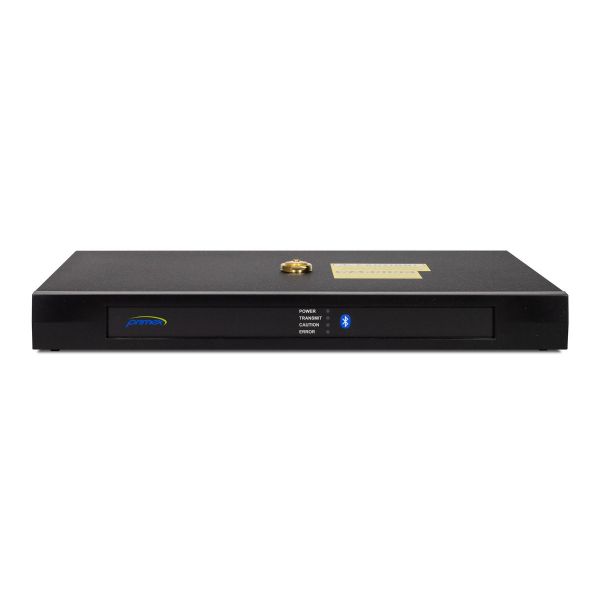

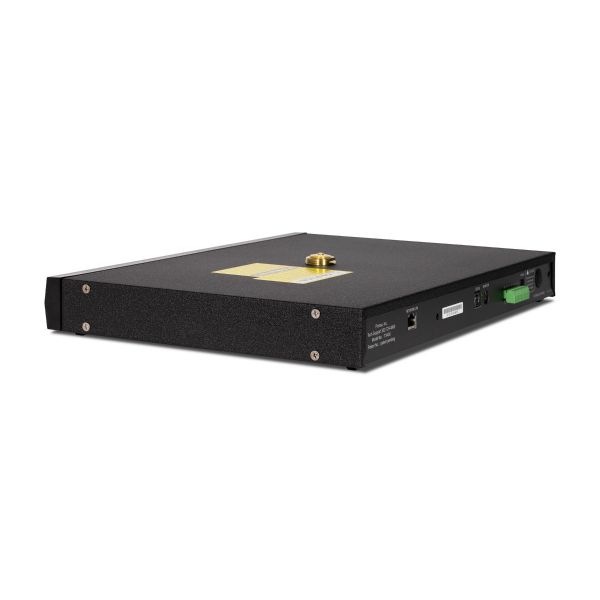

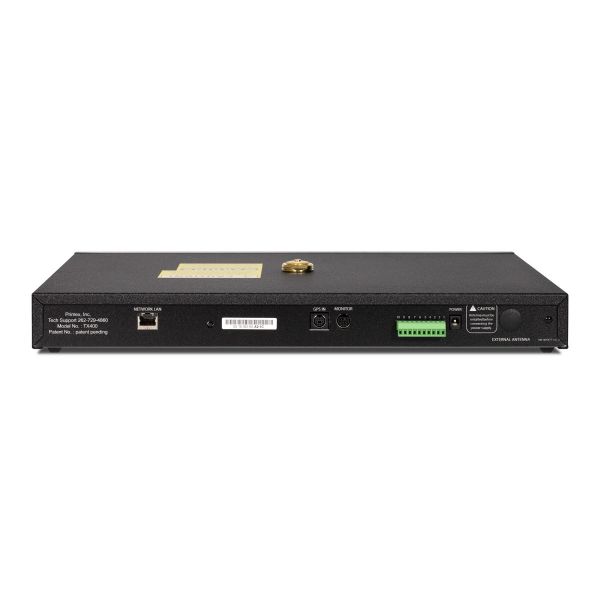

Appropriate for a single building, these transmitters are configurable with an internal antenna, or with an external roof-mounted antenna to expand coverage.

Specifications

Dimensions

17.0"L x 12.0"W x 1.7"D (43.2cm x 30.5cm x4.32cm)

Power Supply Input

120 VAC, 50/60 Hz, 0.6 Amp

Power Supply Output

9 VDC, 2.78 Amp (6 ft. cord, 1.83m)
